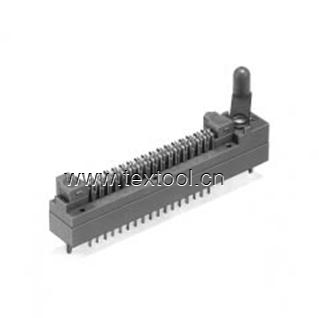

AxialLead ZIP Strip Sockets .050" (1.27 mm) x .100 " (2.54 mm)

For devices with .050" (1.27 mm) lead centers
unformed or extending axially from package
Socket without top-plate cover enables horizontal
insertion of leads
Frequently used in pairs to handle any non-
standard Flat Pack with leads on .050" (1.27 mm)
centers
Order left and right hand versions separately to
obtain a complete pair
Lever actuated zero insertion force mechanism
Accepts pins up 0.14" (0.36 mm) to
0.25" (0.64 mm) square

Date Issued: February 20, 2001
TS-0364-08
Sheet 1 of 2

Physical

Insulation
Material: Glass Filled Polysulfone
Flammability: UL 94V-0
Color: Green
Marking: 3M Logo & Part Number Identifier
Contact
Material: Beryllium CopperPlating:30 m" (0.76 mm) Gold over 50 m" (1.3 mm) Nickel

Electrical

Current Rating: 1 Amp
Insulation Resistance: > 1 109 W at 500 Vdc
Withstanding Voltage: 1000 Vrms at Sea Leve1

Environmental

Operating Temperature Rating: - 55°C to +150°C

3M Electronic Handling and Protection Division
6801 River Place Blvd. Austin, TX 78726-9000
